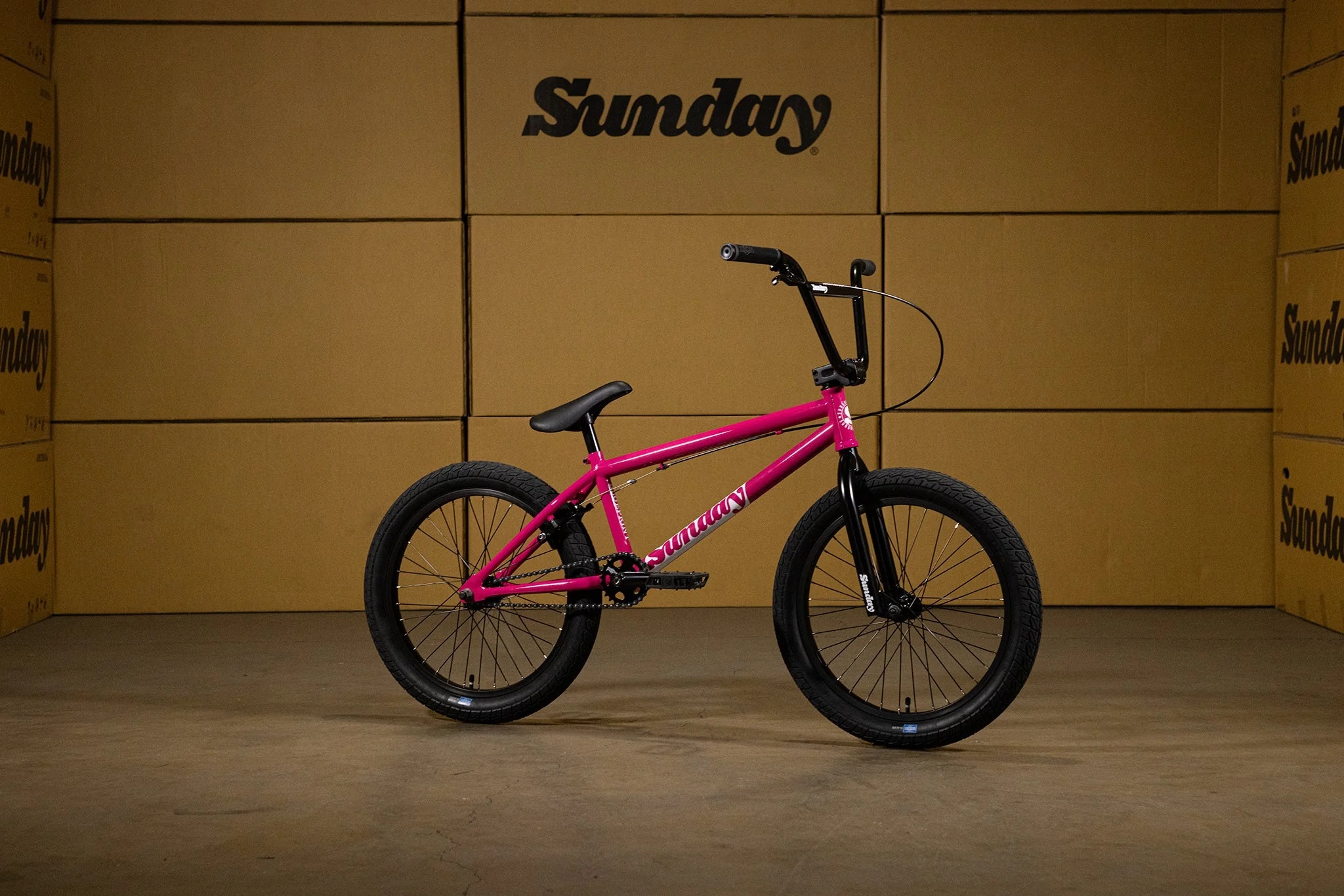

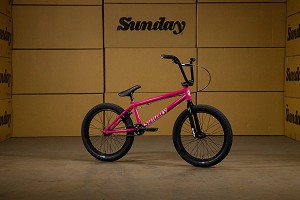

SUNDAY BLUEPRINT - SURF PINK - 20.5"TT
The Blueprint is the perfect entry-level 20” bike for new riders
starting out. It’s built around a pro-level geometry to help them
progress faster, and looks 100% like a Sunday.
This bike is equipped with hassle-free parts like Odyssey Springfield
brakes, a Sunday Freeze stem and Current 2.4” tires to help keep you
focused on the important part - riding. The Blueprint comes with an
integrated head tube this year for greater durability and pro style points.
SPECIFICATIONS:

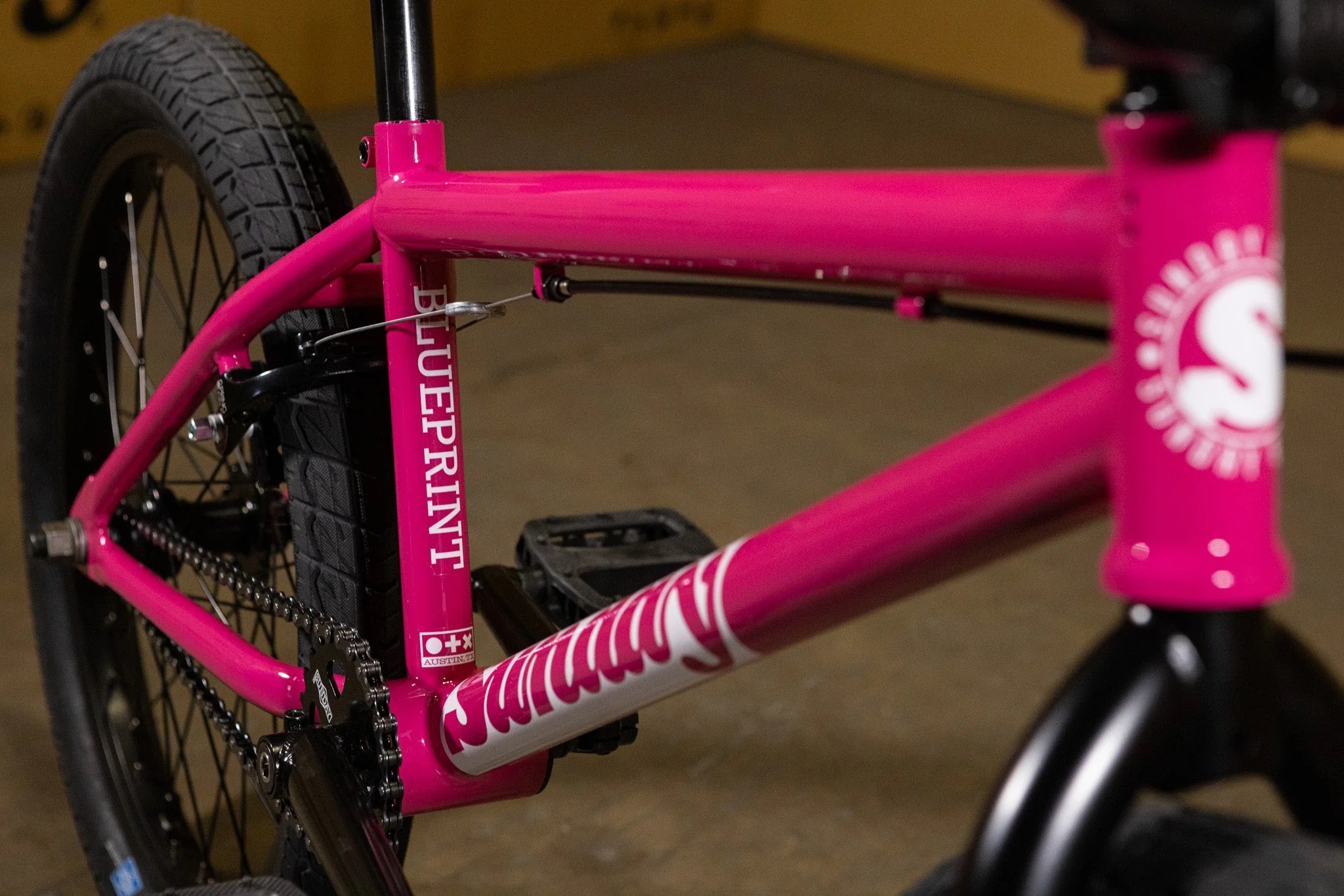

Frame: Sunday Blueprint
Top Tube Length: 20.5”
Chain Stay Length: 13.2-13.5”
Head Tube Angle: 75º
Seat Tube Angle: 71º
Fork: Sunday Blueprint, 20" fork w/ 2-piece steerer tube and welded pre-load

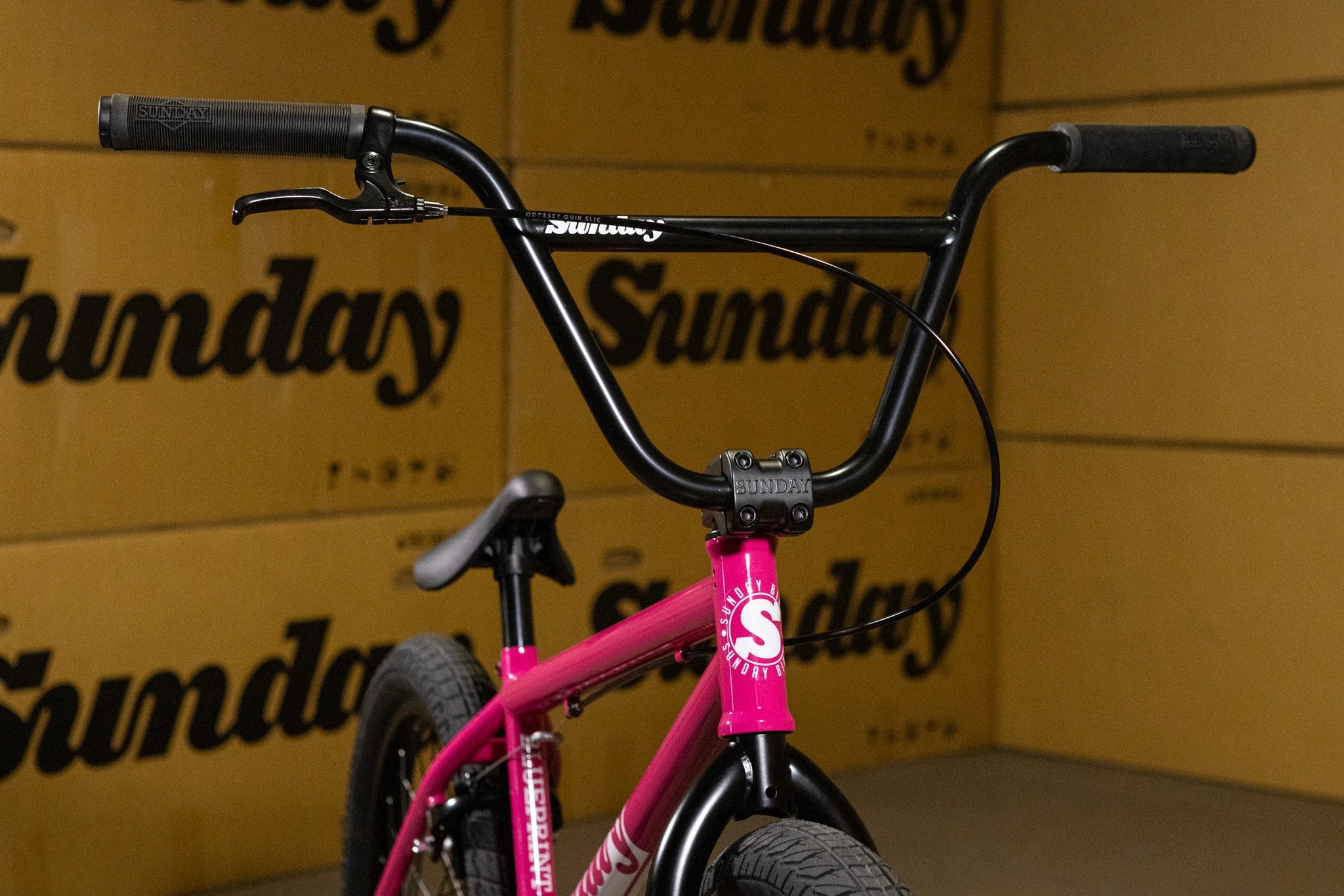

Bars: Sunday, 2 piece, 9"

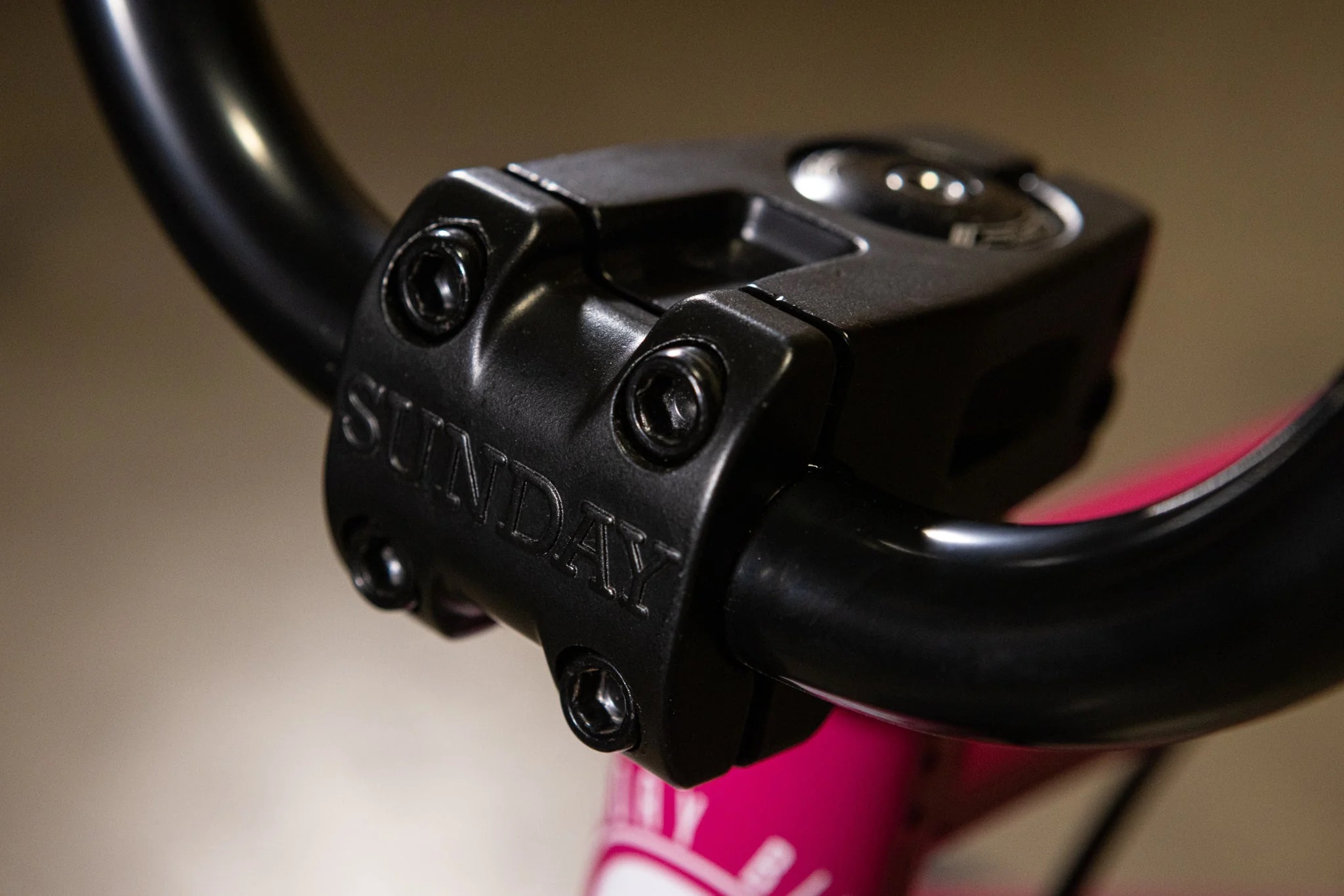

Stem: Sunday Freeze, front load, 48mm
Headset: FSA integrated
Alloy Cap: FSA aluminum cap
BRAKE Lever: Aluminum, U-brake compatible

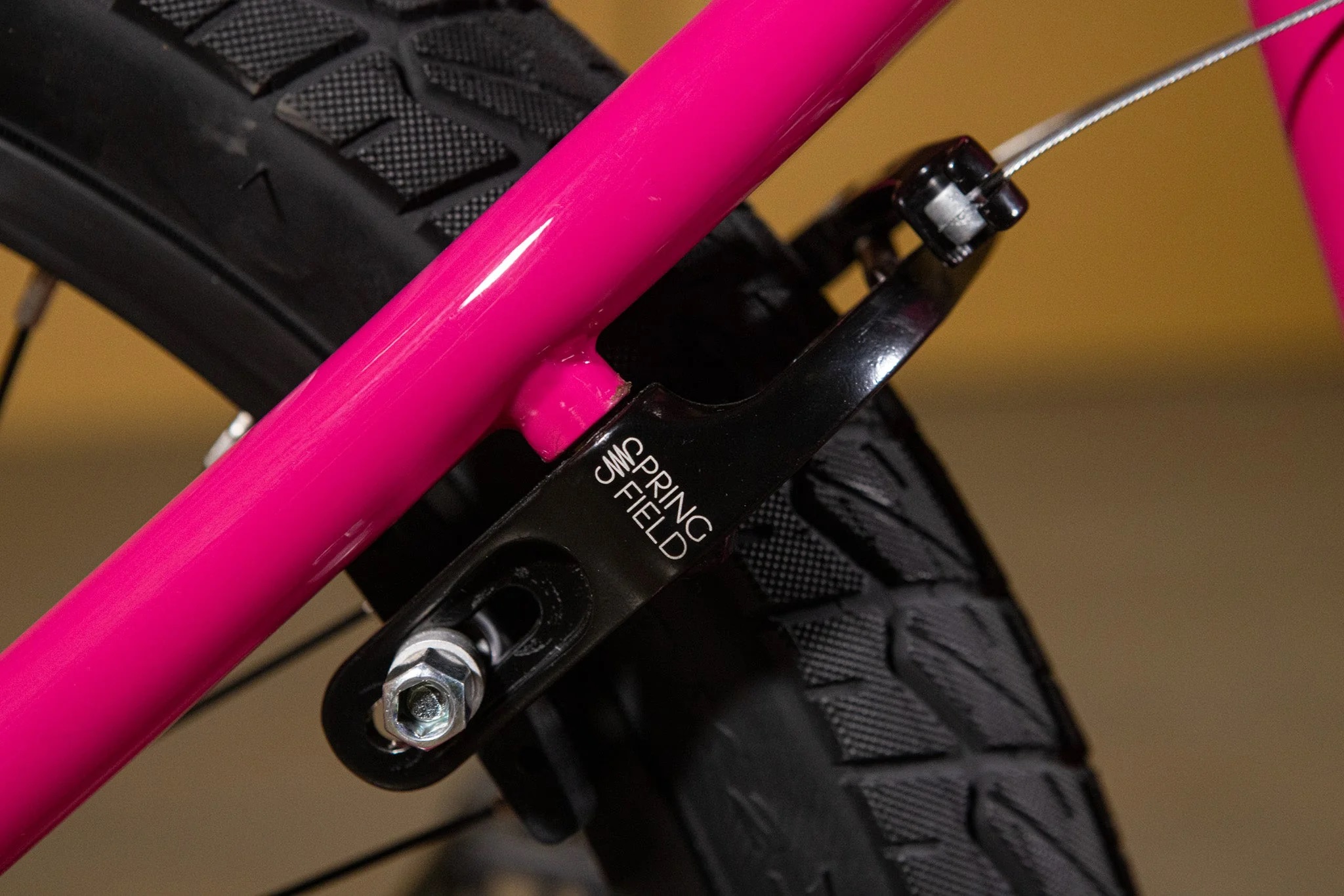

Brake: Odyssey Springfield U-brake

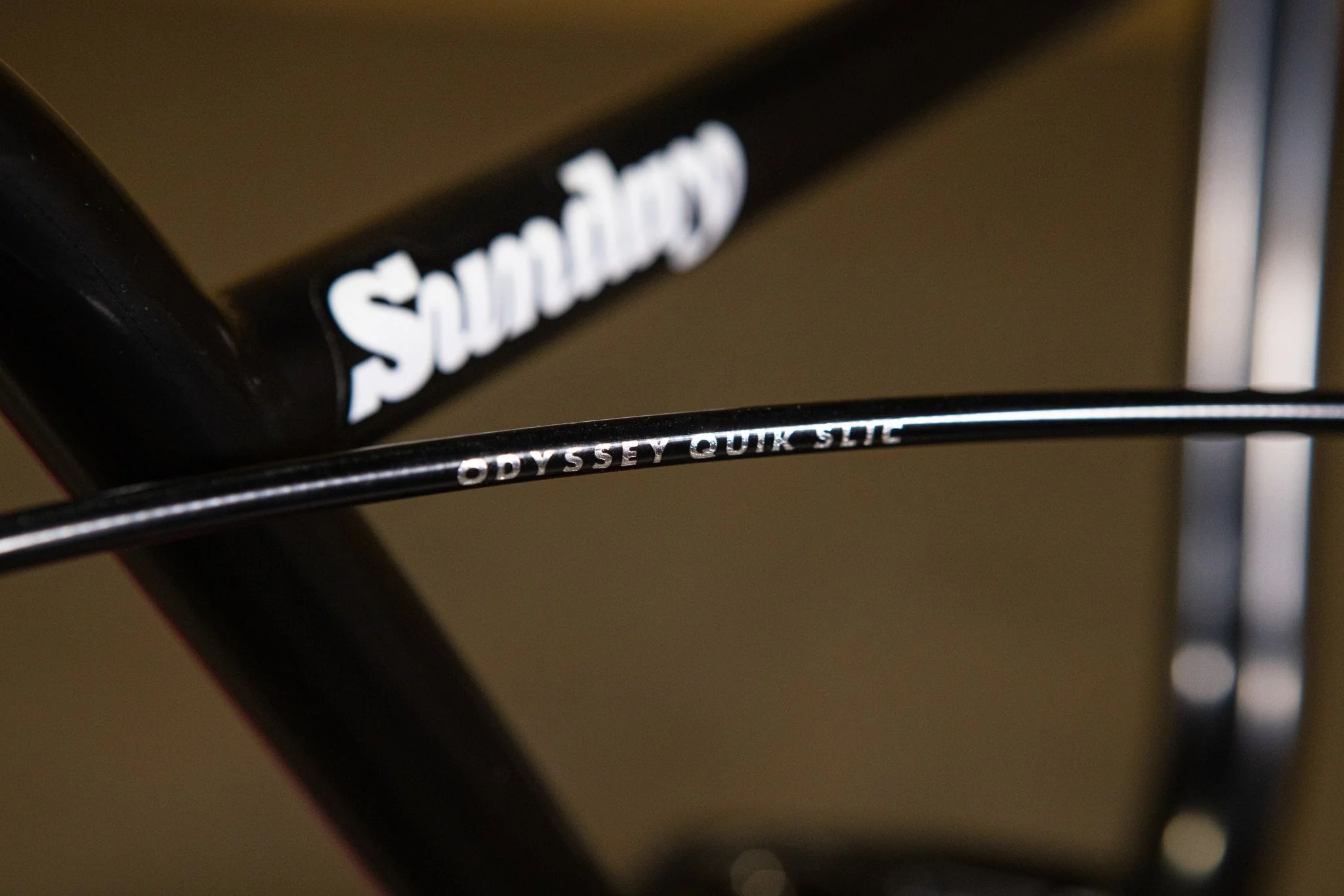

Brake Cable: Odyssey Quik Slik

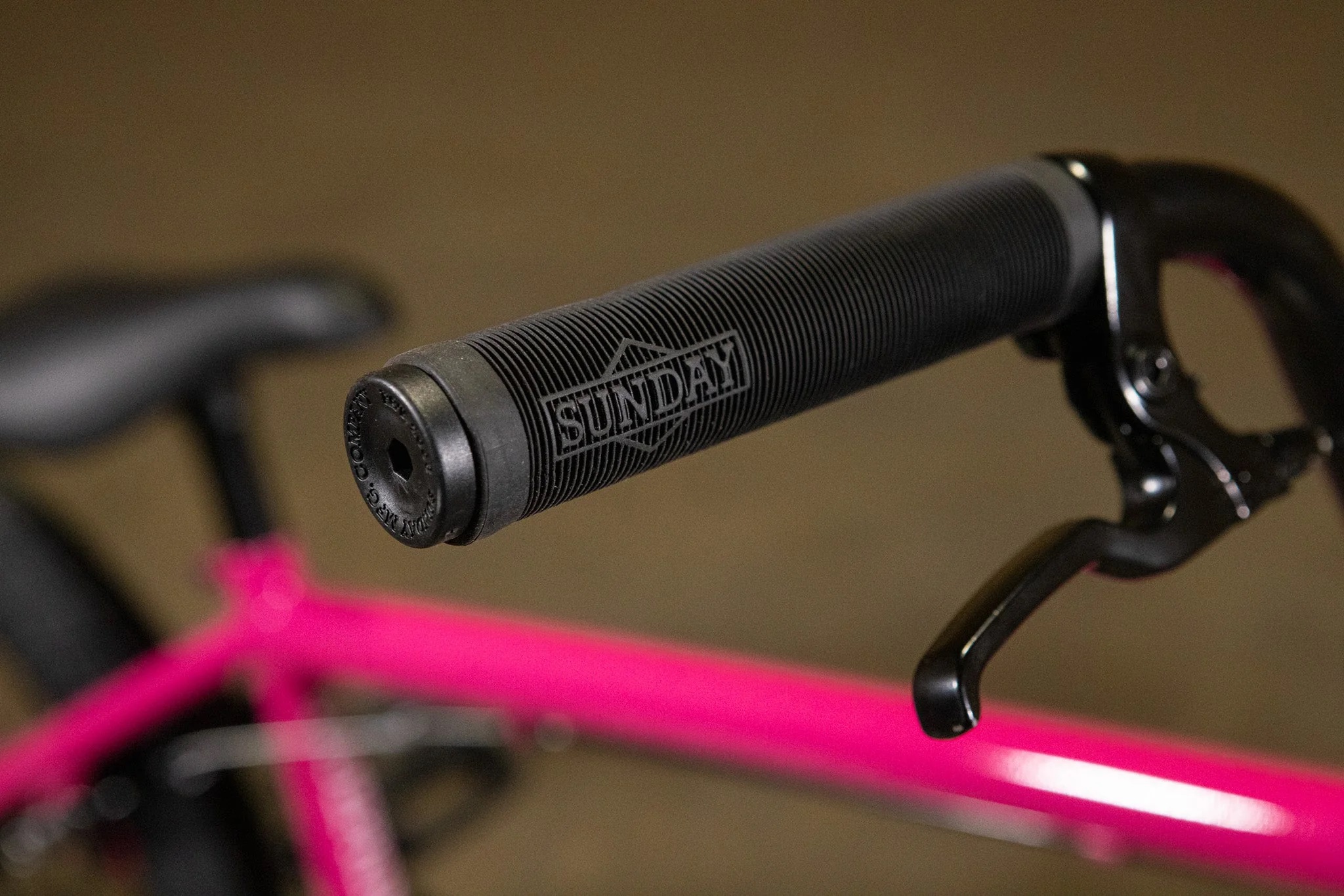

Grips: Sunday Cornerstone

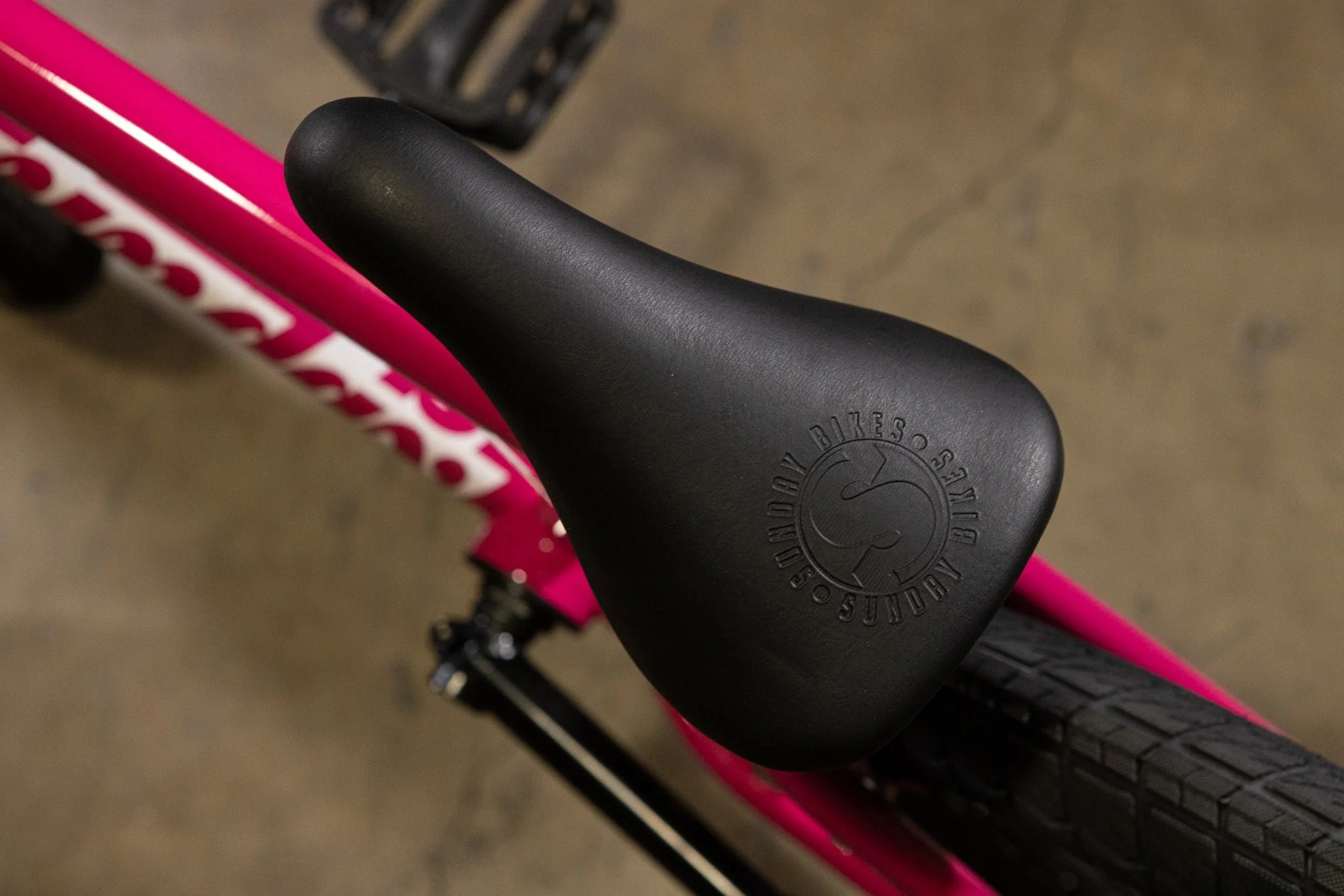

Seat: Sunday Badge, seat and post combo
Seat Post: Integrated

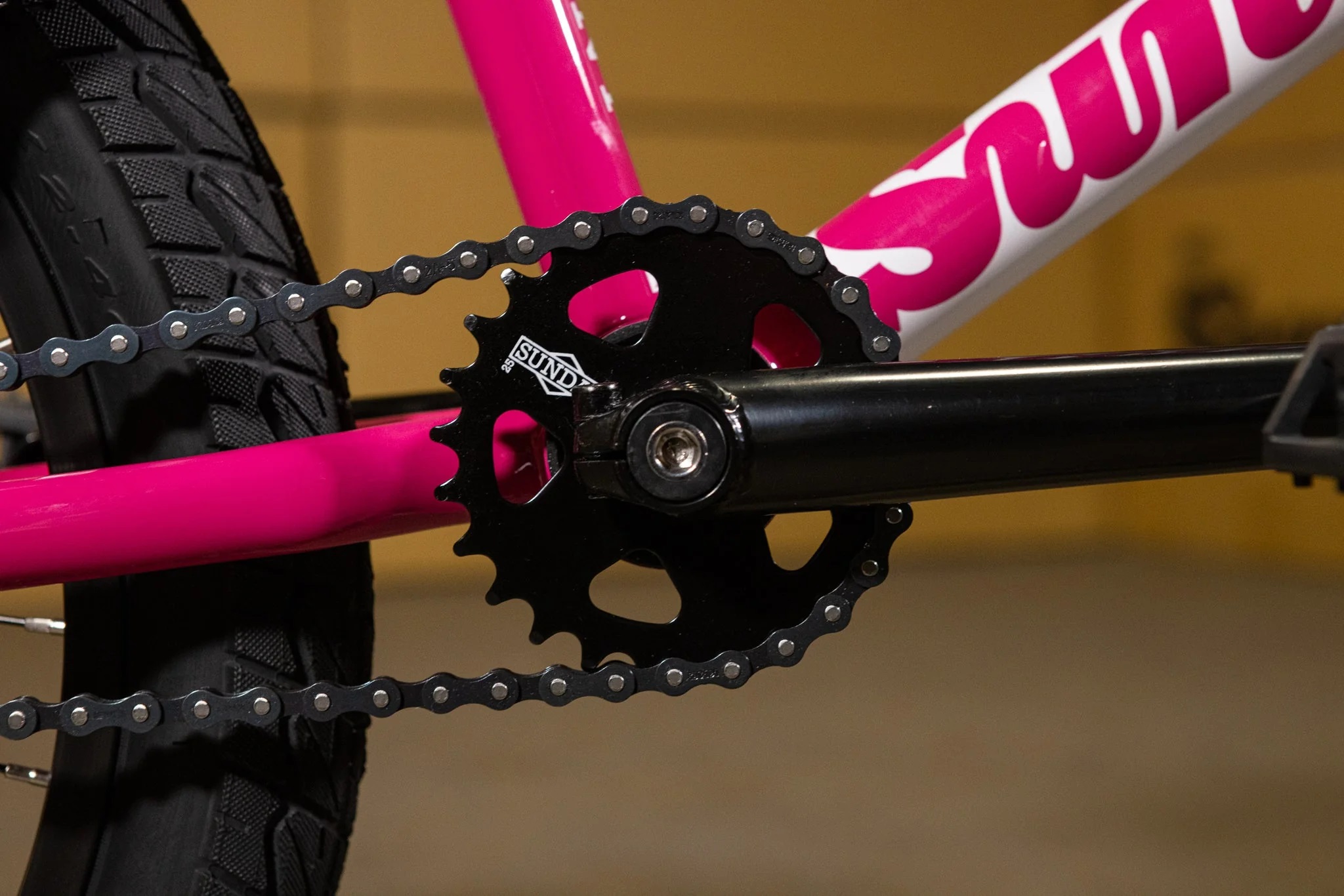

Seat Clamp: IntegratedSprocket: Sunday Sabretooth v2, 25T, steel
Cranks: 160mm, 3-piece, chromoly
BB: Loose-ball, American, 19mm

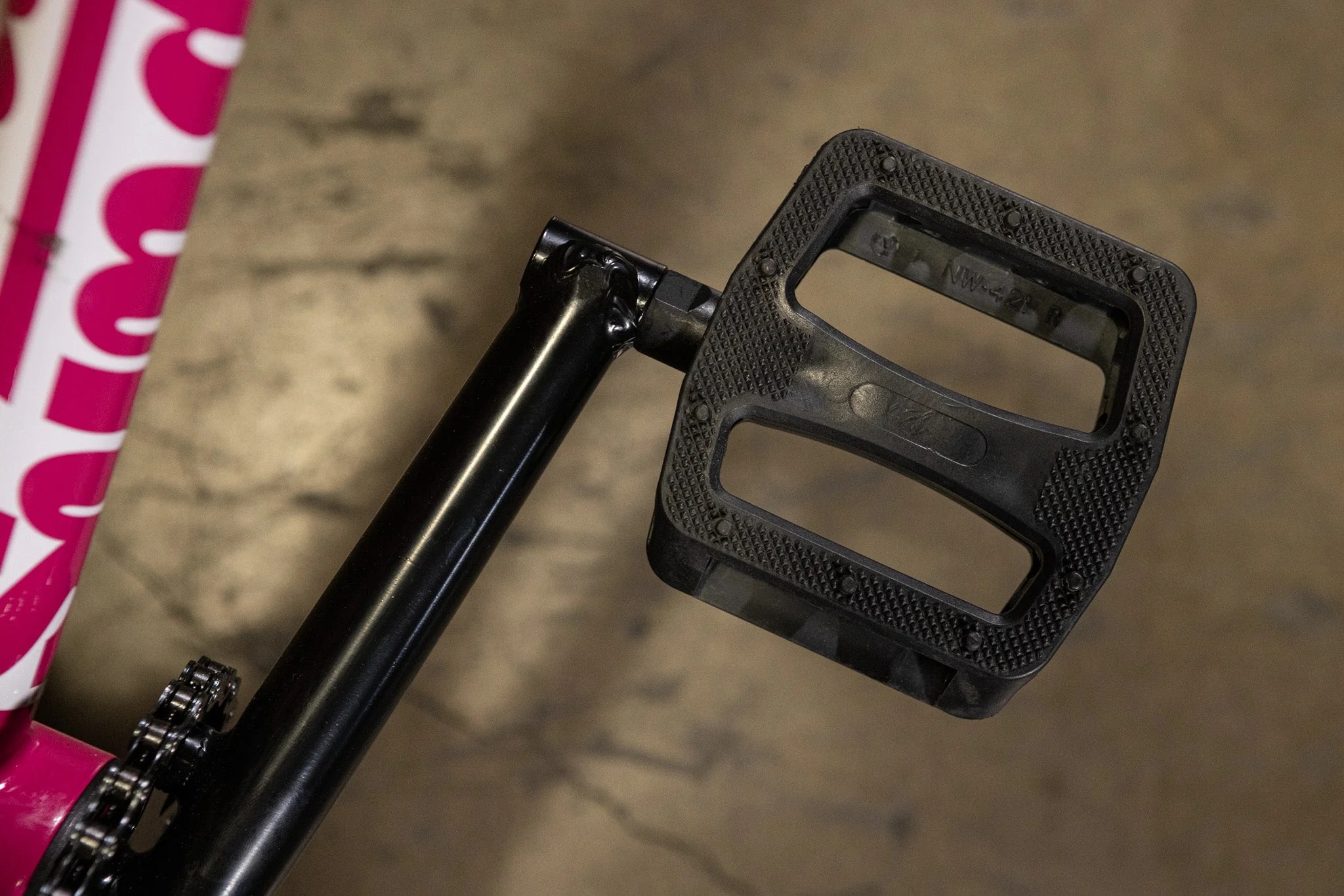

Pedals: FPD platform, plastic
Rims: P-7x aluminum, 20"

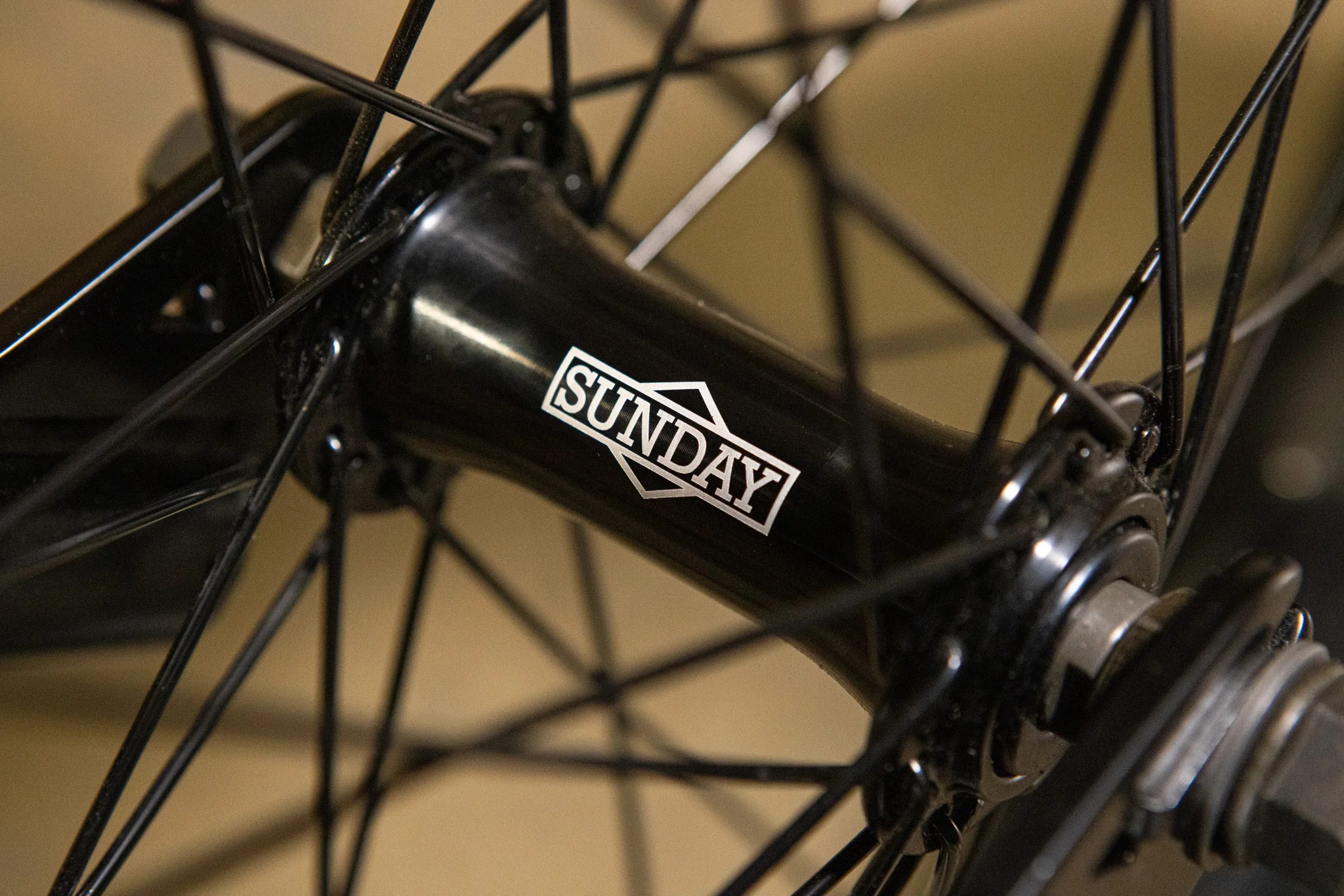

Front Hub: Sunday 36H, low flange, loose-ball, 3/8” axle
Rear Hub: Sunday 36H, 14mm axle w/ 9-tooth driver
Spokes: 14g steel, black

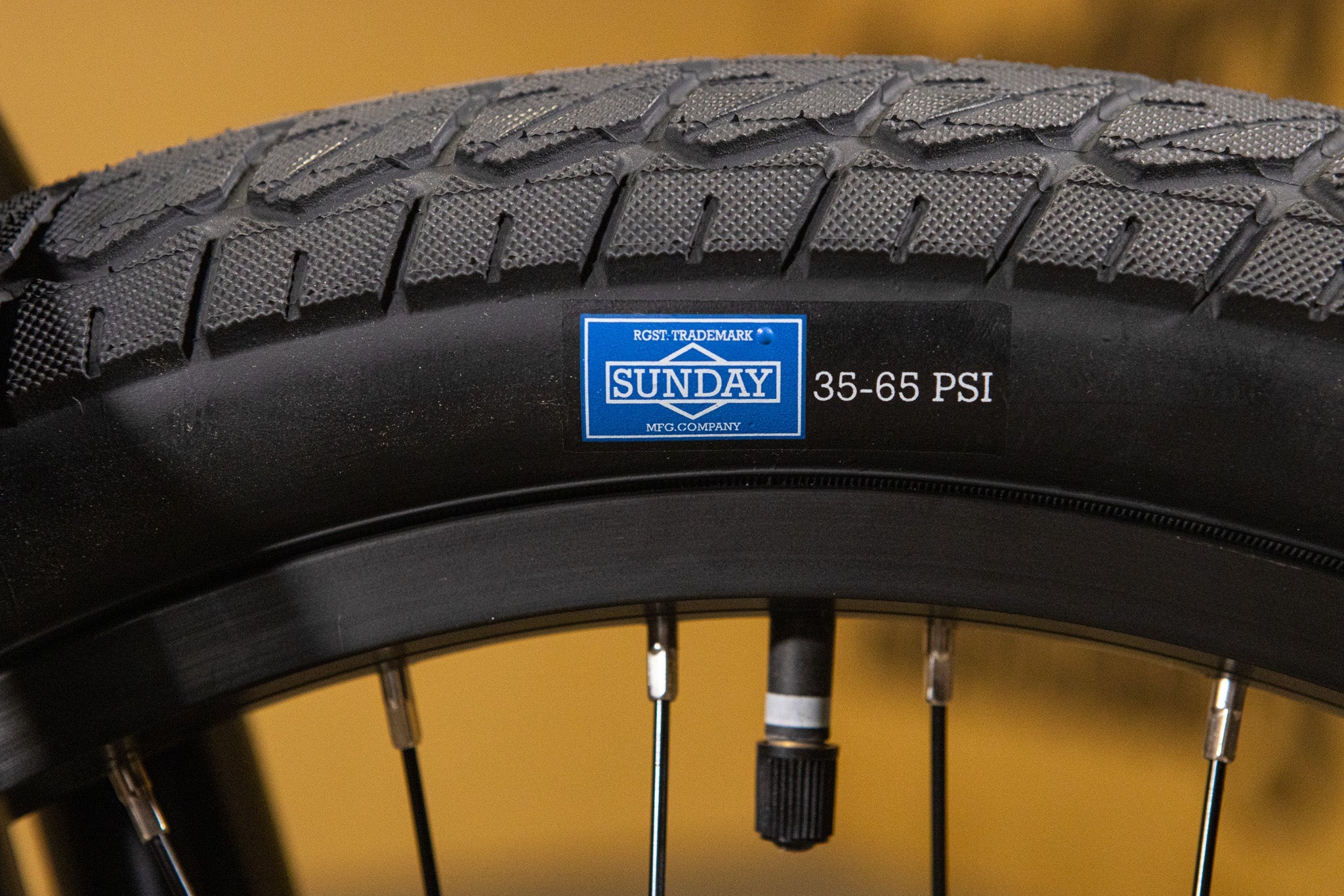

Tires: Sunday OEM, 20 x 2.4" (F & R)
Chain: KMC S1
Please note: Price listed does not include assembly. Assembly is required.
*Specs subject to change without notice.
